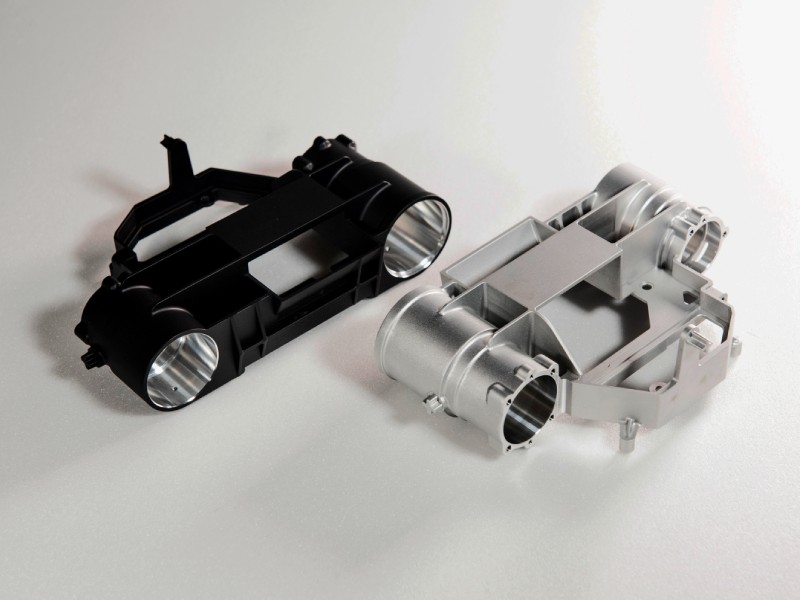

Services
Create the desired part shapes for the products you have in mind. |

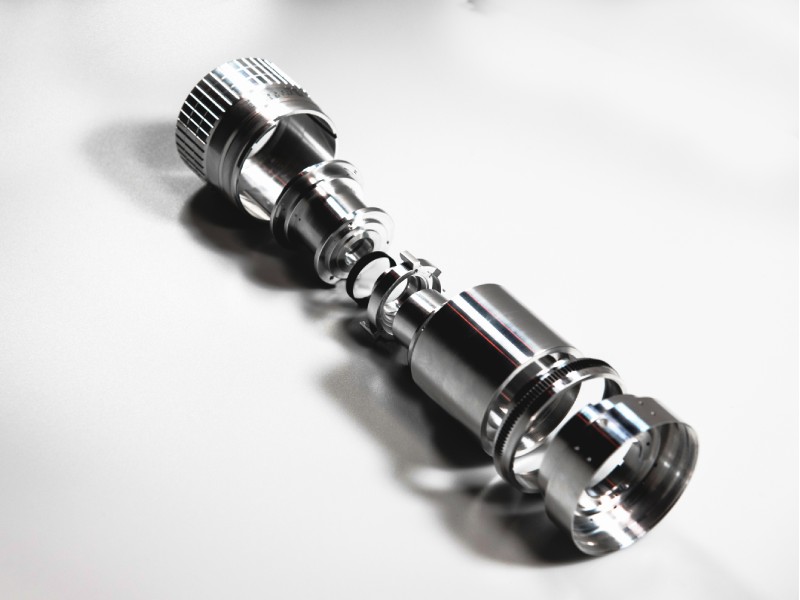

CNC Turning
Turning bars of your desired material into precise shape and parts. |
Sandblasting
Create the type of surface or surface texture you desire for your finished parts using beads or steel. |
Laser Engraving
Helping you mark your components with serial numbers, part numbers, logos, position markings and more. |
CNC Wire Cut
Perform fine-point, thermal technology for cutting and shaping your materials. |
Assembly
We also do precise, tight tolerance mechanical and electro-mechanical assemblies for various industries. |
Production Machinery
CNC Milling
3 Axis CNC Vertical Milling Machine 18 units
Machine Capabilities:
– Machine travel range: 600 mm to 1500 mm with high-speed spindle RPM 15,000
– Repeatability ±0.004 mm
– Positioning ±0.003 mm
– Spindle run-out 0.003 mm
– Spindle motor 20 hp
CNC Milling
3 Axis CNC Vertical Milling Machine 18 units
Machine Capabilities:
– Machine travel range: 600 mm to 1500 mm with high-speed spindle RPM 15,000
– Repeatability ±0.004 mm
– Positioning ±0.003 mm
– Spindle run-out 0.003 mm
– Spindle motor 20 hp
CNC Milling
5 Axis CNC Vertical Milling Machine 43 units
Machine Capabilities:
– Resolution (deg) 0.001
– Indexing accuracy (sec) 15″
– Repeatability (sec) 6″
– Tilting angle range (deg) -30/+120
– Allowable cutting torque (μm) 370
CNC Milling
5 Axis CNC Vertical Milling Machine 43 units
Machine Capabilities:
– Resolution (deg) 0.001
– Indexing accuracy (sec) 15″
– Repeatability (sec) 6″
– Tilting angle range (deg) -30/+120
– Allowable cutting torque (μm) 370
CNC Turning
2 Axis CNC Turning/Lathe Machine 5 units
Machine Capabilities:
– Machine travel range: 480 mm
– Diameter range from 4 mm to 200 mm with spindle RPM4,000
– Repeatability ±0.004 mm
– Positioning ±0.003 mm
– Spindle run-out 0.003 mm
– Spindle motor 20 hp
CNC Turning
2 Axis CNC Turning/Lathe Machine 5 units
Machine Capabilities:
– Machine travel range: 480 mm
– Diameter range from 4 mm to 200 mm with spindle RPM4,000
– Repeatability ±0.004 mm
– Positioning ±0.003 mm
– Spindle run-out 0.003 mm
– Spindle motor 20 hp
Wire Cut Electrical Discharge Machining
2 Axis Machine 1 unit
Machine Capabilities:
– Machine travel range: 400 mm 100 holes 95% accuracy within ±0.0015 mm with 3 cuts
– Maximum cutting speed 3.3 mm per minute with workpiece 50 mm thickness
– Surface finish is Ra 0.06 with 3 cuts
Wire Cut Electrical Discharge Machining
2 Axis Machine 1 unit
Machine Capabilities:
– Machine travel range: 400 mm 100 holes 95% accuracy within ±0.0015 mm with 3 cuts
– Maximum cutting speed 3.3 mm per minute with workpiece 50 mm thickness
– Surface finish is Ra 0.06 with 3 cuts

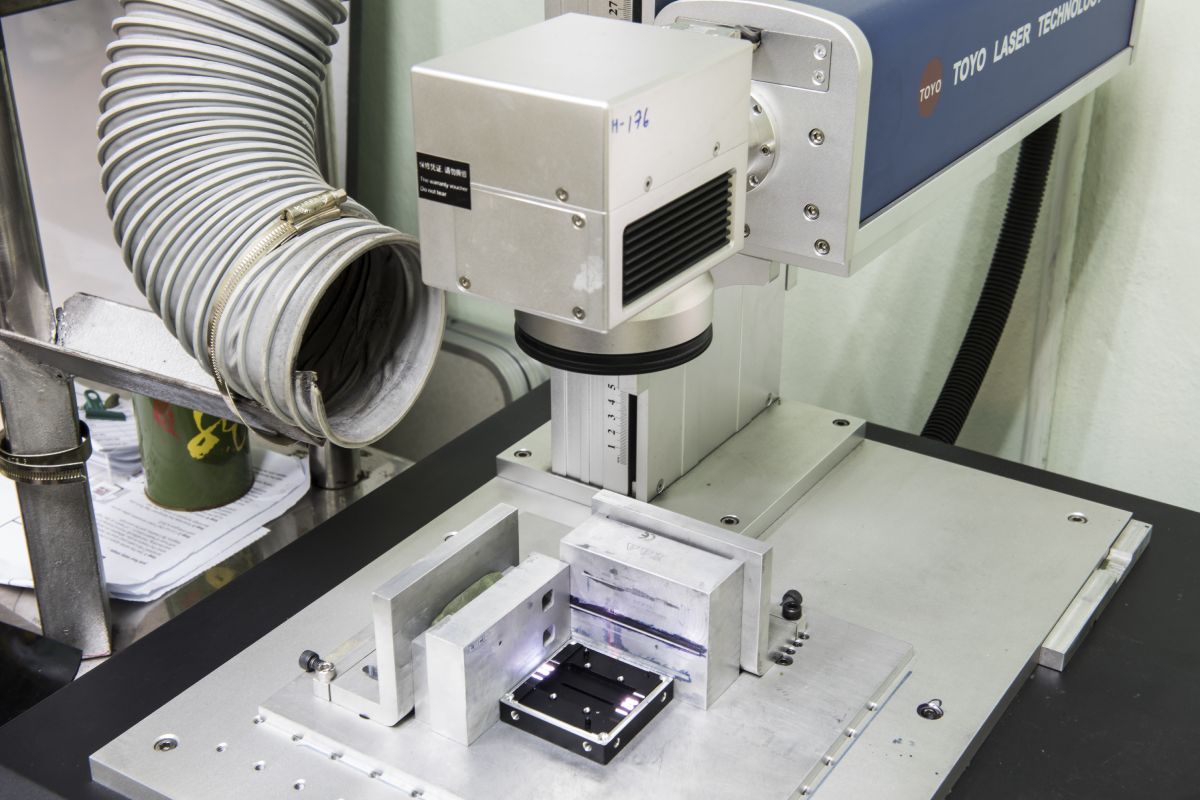

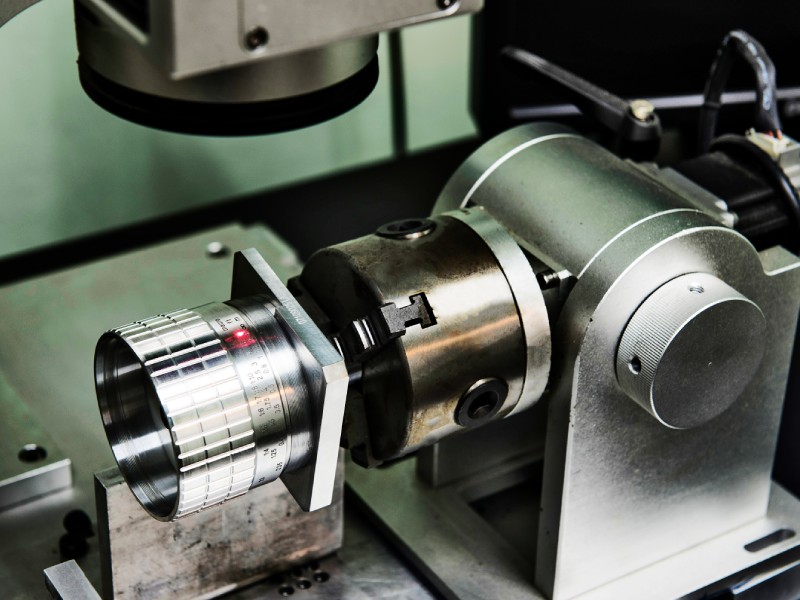

Laser Engrave Machine
2 Axis Laser Marking Machine + 360° Rotary Device – 1 unit
Machine Capabilities:
– Precision ruler: 500 mm
– Max height (parts): 300 mm
– Marking area: 100mm x 100 mm
– Rotary device = 360°
– Material = ferrous & non ferrous metal
Laser Engrave Machine
2 Axis Laser Marking Machine + 360° Rotary Device – 1 unit
Machine Capabilities:
– Precision ruler: 500 mm
– Max height (parts): 300 mm
– Marking area: 100mm x 100 mm
– Rotary device = 360°
– Material = ferrous & non ferrous metal

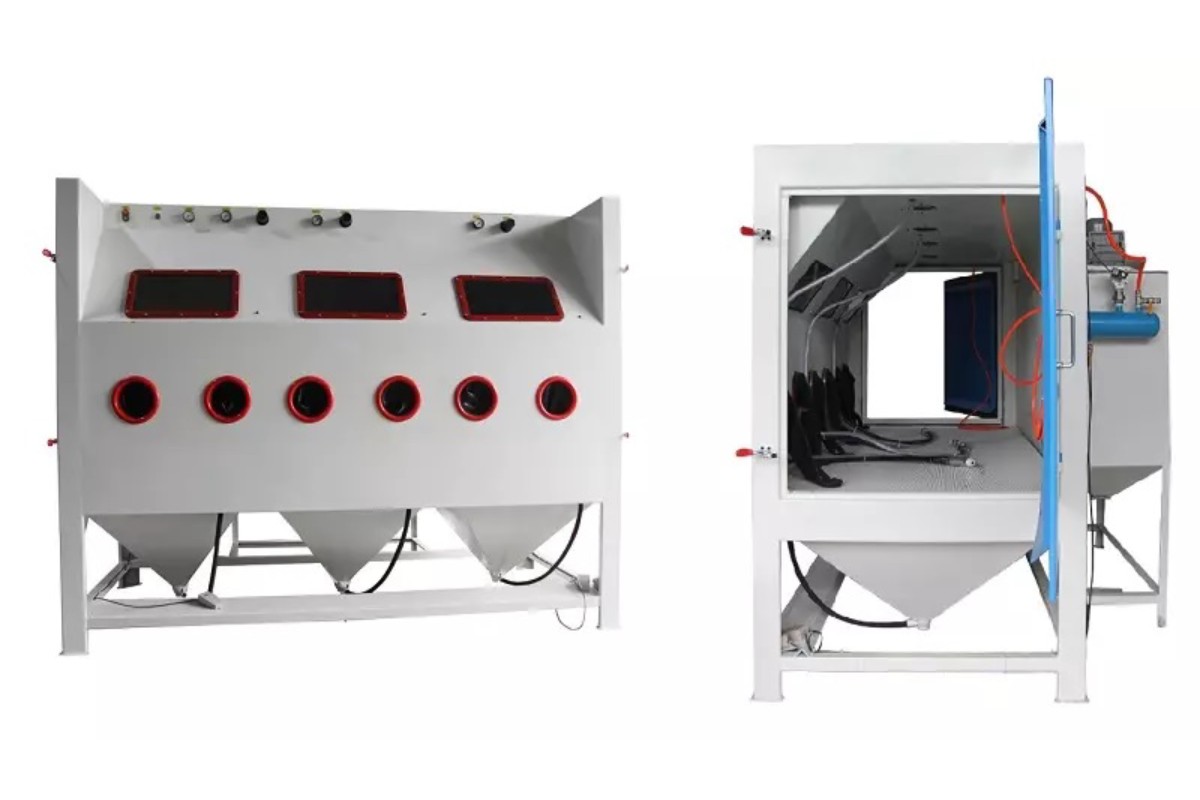

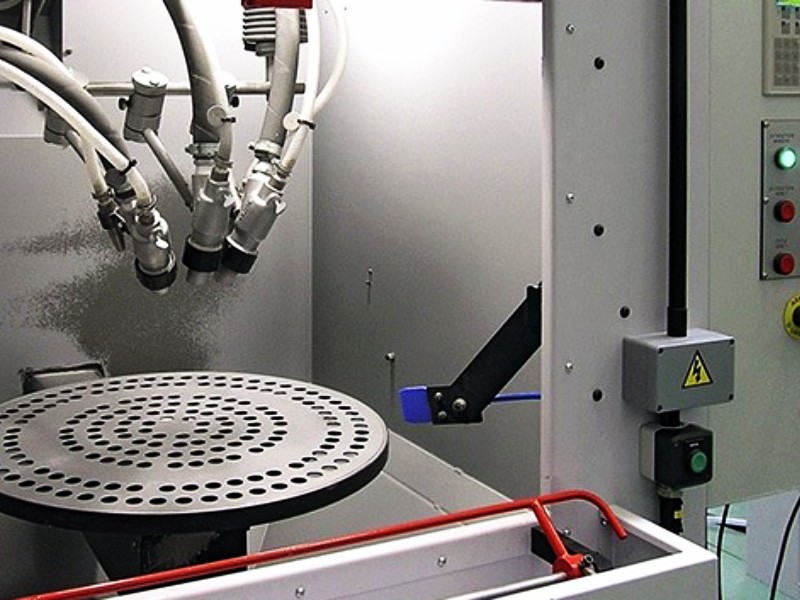

Sand Blasting Machine
Manual Blasting 4 units
3 units – 1 meter cube
1 unit – 1 x 3 meter cube
Rotary Blasting 1 unit
1 unit – 1.5 meter cube
Beads Material:
– Ceramic Beads
– Aluminium Oxide Beads
– Glass Beads
– Steel Grit
– Steel Shot
Sand Blasting Machine
Manual Blasting 4 units
3 units – 1 meter cube
1 unit – 1 x 3 meter cube
Rotary Blasting 1 unit
1 unit – 1.5 meter cube
Beads Material:
– Ceramic Beads
– Aluminium Oxide Beads
– Glass Beads
– Steel Grit
– Steel Shot
Metrology Machinery

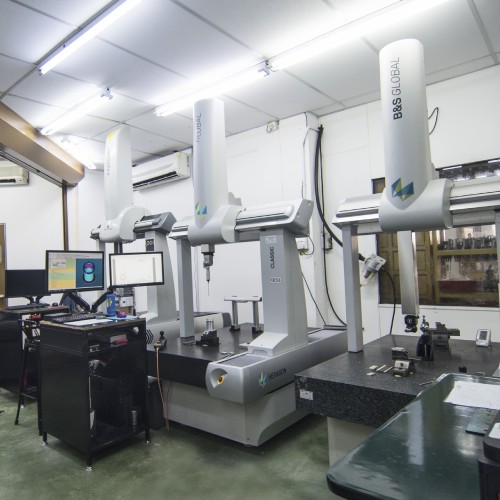

Coordinate Measuring Machine
3 Axis Machine 4 units
Machine Capabilities:
– Machine stroke range: X = 700 mm, Y = 1,000 mm, Z = 660 mm
– System Accuracy: MPEE = 1.9 +3.3L/1,000μ, MPEP = 1,9μ
– Resolution: 0.039μ (0.000039 mm)
– Maximum part weight (kg): 900
Profile Comparator
3 Axis Machine 2 units
Machine Capabilities:
– Measuring stroke range: X = 150 mm, Y = 150 mm, Z = 100 mm

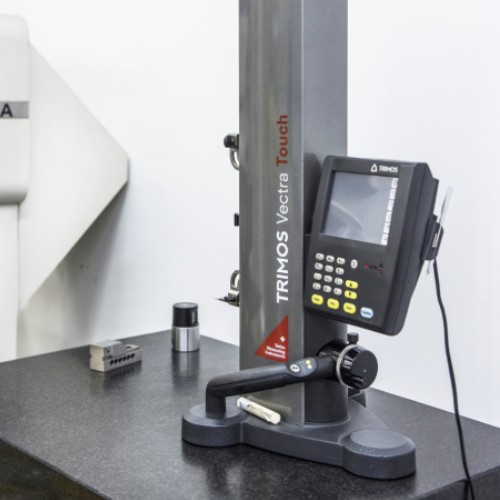

Trimos-Height Gauge
Vectra Touch, VT300 1 unit
Machine Capabilities:
– Machine stroke range: 300 mm
– Resolution: 0.01 mm / 0.001 mm / 0.0005″ / .00005′
– Overall measuring accuracy: 3μ + (L(mm)/300 = μm or -.—12″ + (L(inch)/300, 000) inch
– Repeatability: ±2 s = 32 μm or 0.00008″
Optical & Multisensor Metrology
Optiv Classic 322
Machine Capabilities:
– Measuring stroke range:
x= single: 300 mm (11.81 in.) mutual: 245 mm (9.65 in.)
y= 200 mm (7.87 in.)
z= 200 mm (7.87 in.)
– Load-bearing capacity of the table up to 16 kg
-Measuring accuracy: At 20°C, according to ISO 10360-7, with Vision sensor, at highest zoom magnification, standard measuring plane
XY measuring accuracy : MPE (Exy) = (2.8 + L/150) µm
Z measuring accuracy: MPE (Ez) = (5.0 + L/150) µm
– Magnification: 21xto134x
Surface Treatment
We provide surface treatments for over 20 types of finishings
– Titanium Anodizing
– Anodizing
– Hard Chroming
– Cu, Ni, Cr Plating
– Satin Chrome
– Tri-Chrome Black
– Cu Plating
– Ni Plating
– EN Plating
– Au Plating
– Sn Plating
– Zn Plating
– Alodine
– Electro-Polishing
– Passivation
– Clear Chromate
– Powder Coating
– PTFE/Teflon Coating
– Silicone Coating
– PU Coating
– ED Coating
– Wet Paint
Manufacturing Products

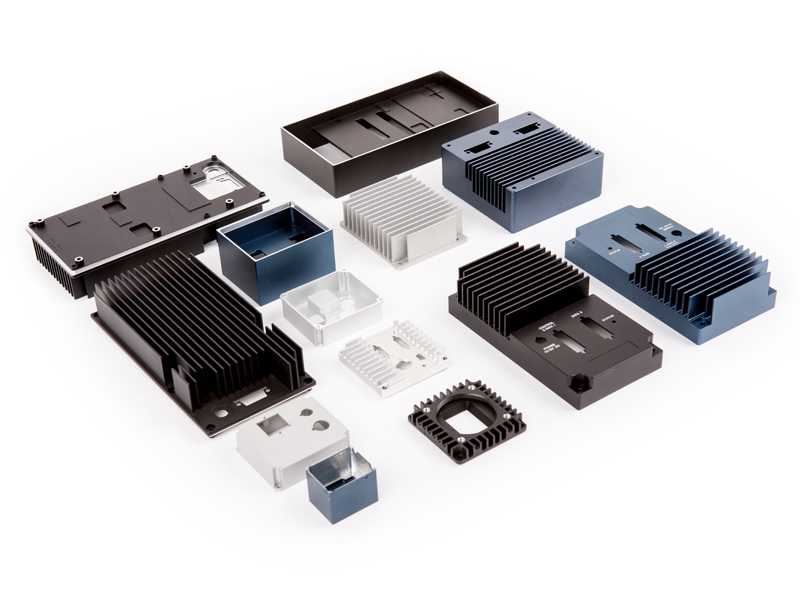

Photonic Components
Photonic Components

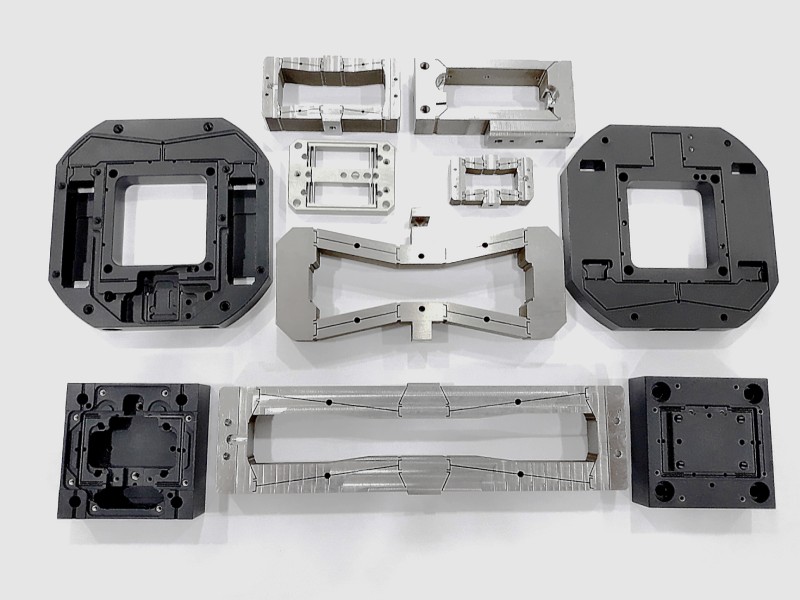

Motion Components
Die Casted Parts

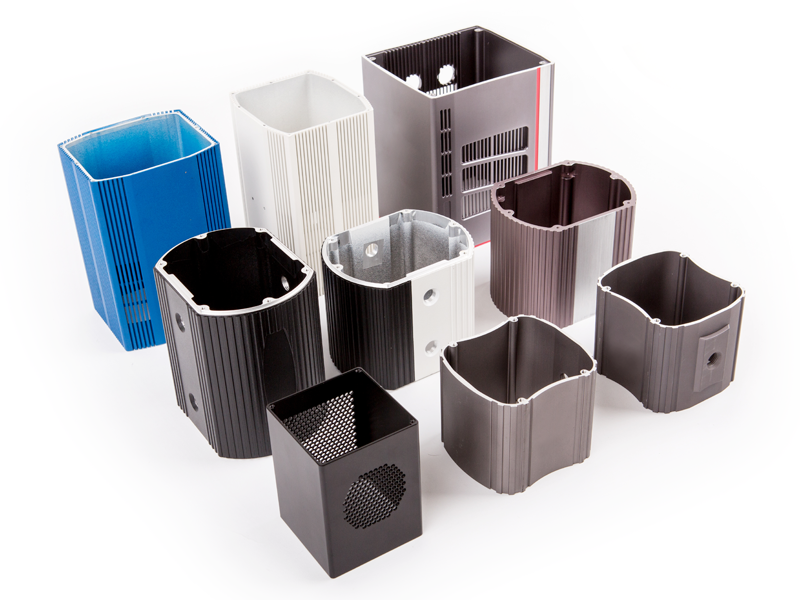

Extruded Parts
Medical Device Components
Front-End Components

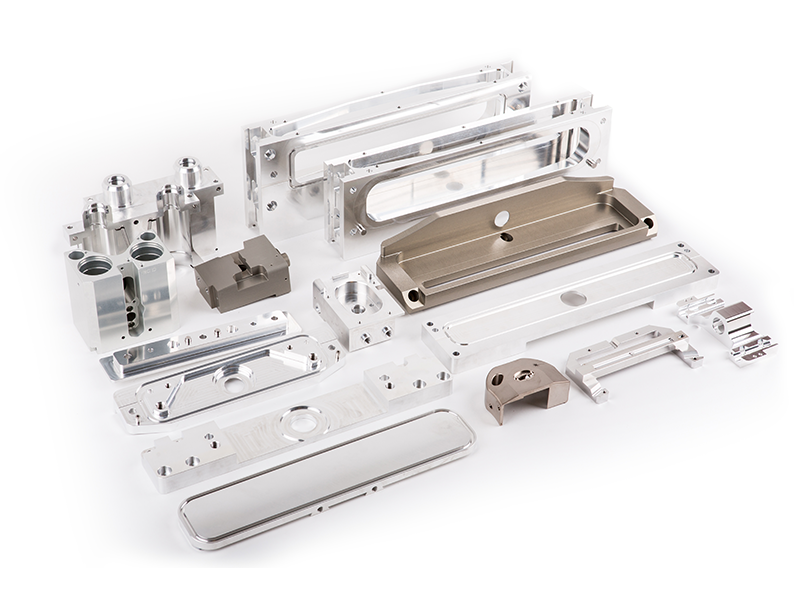

Semiconductor Components

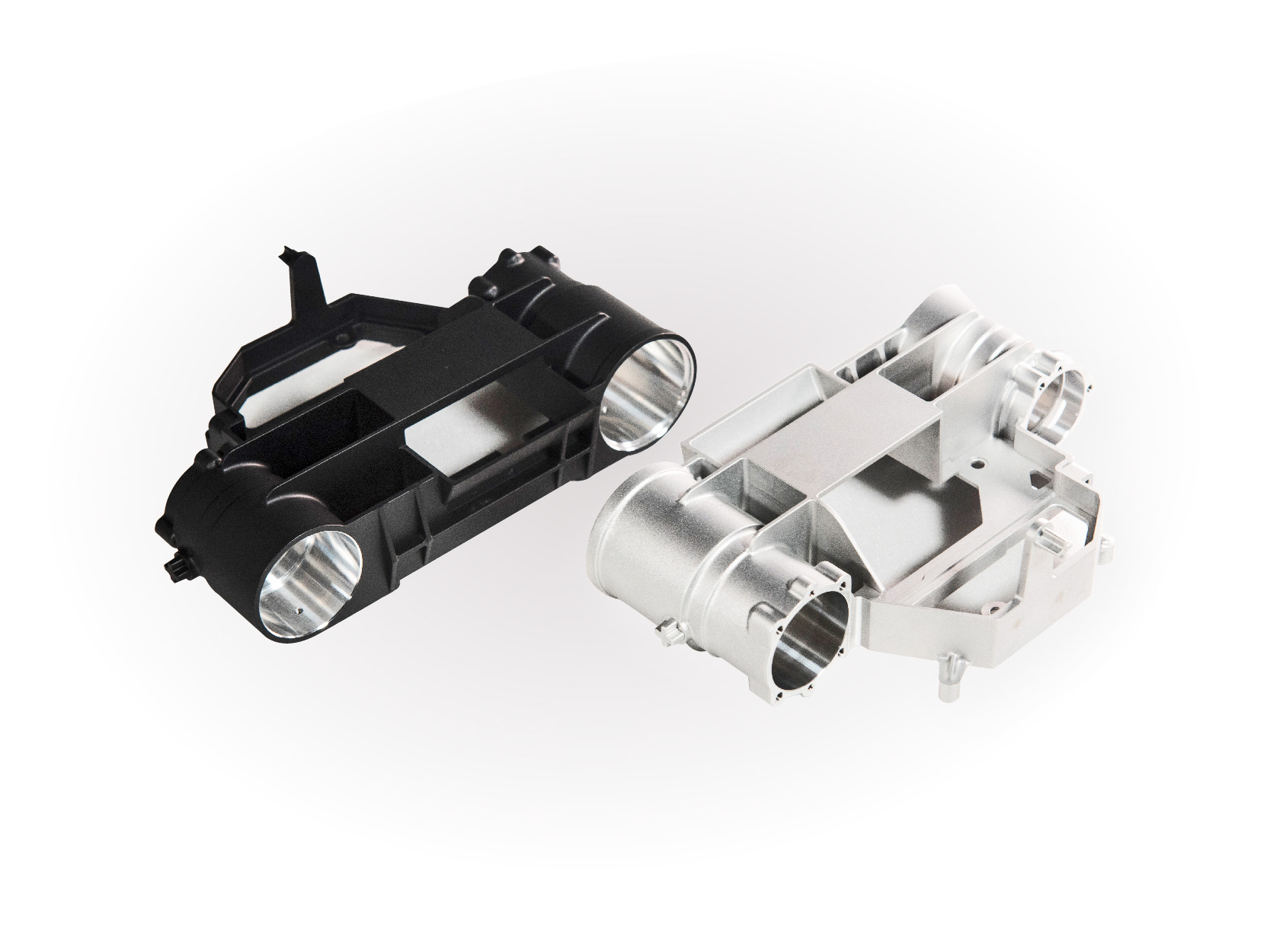

3D Prototyping
Camera Lens

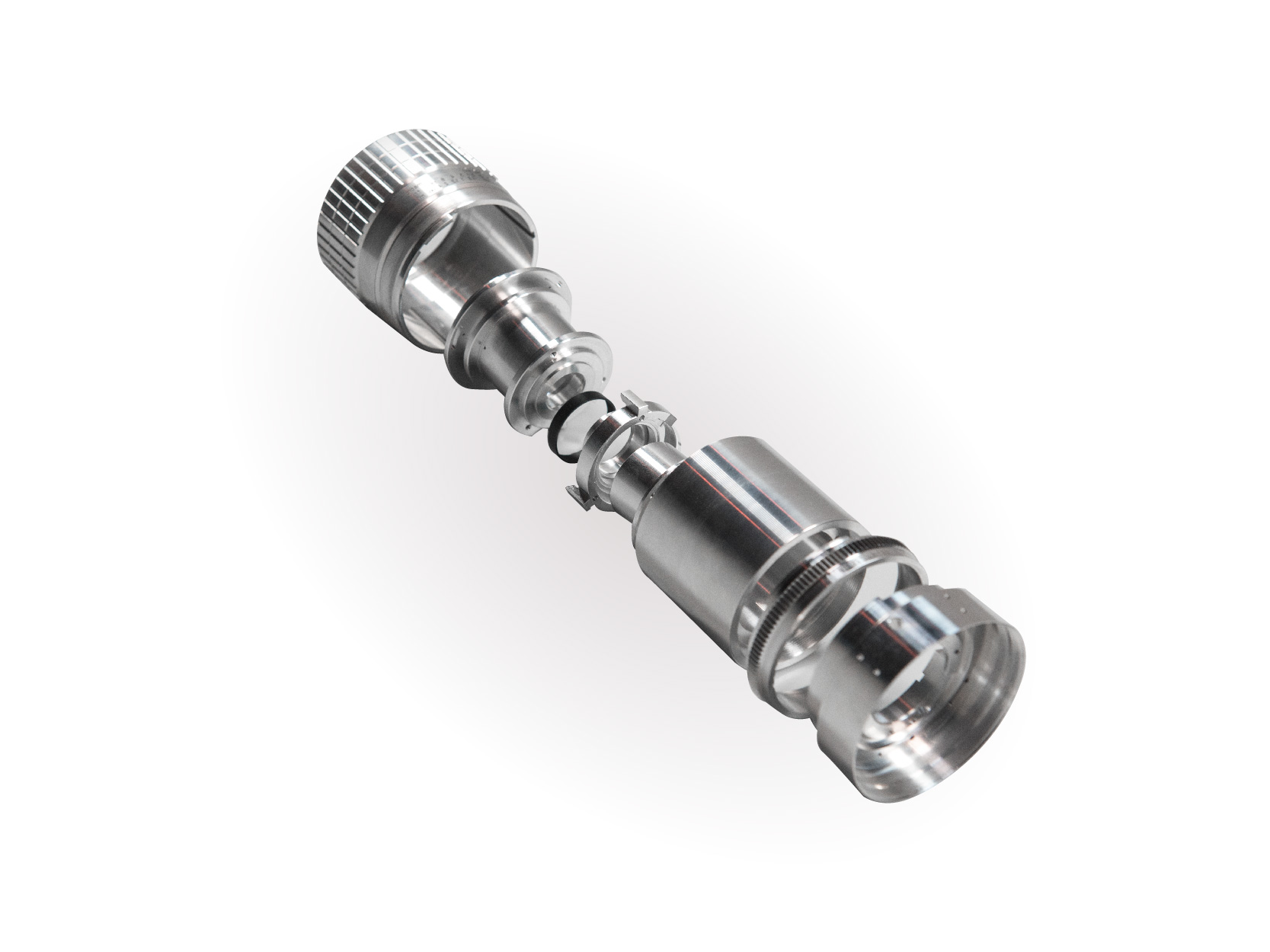

Lens Components
